Stepp SPH OJ

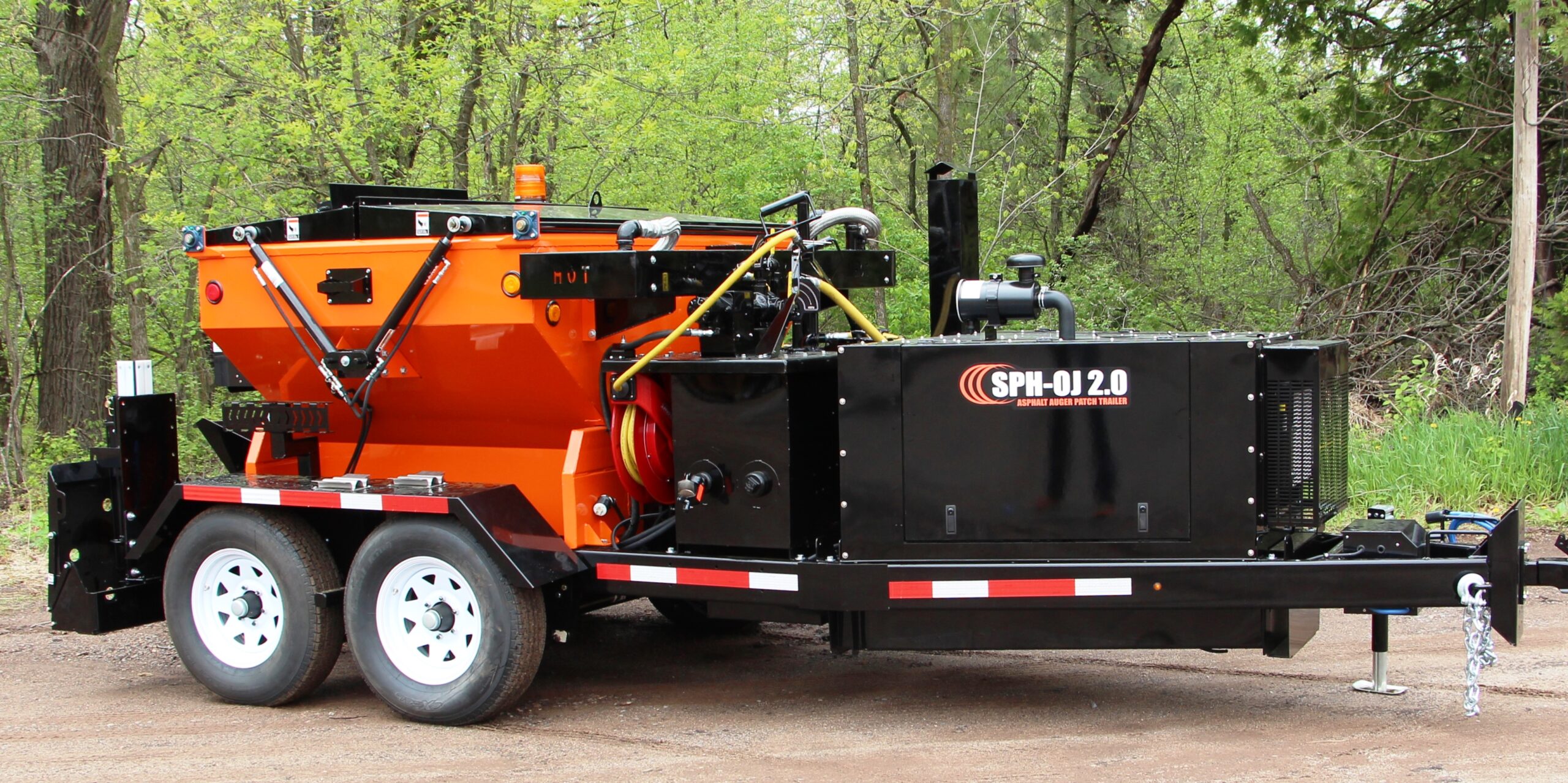

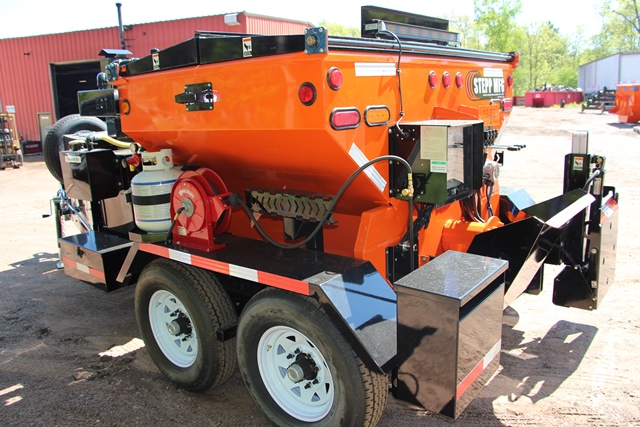

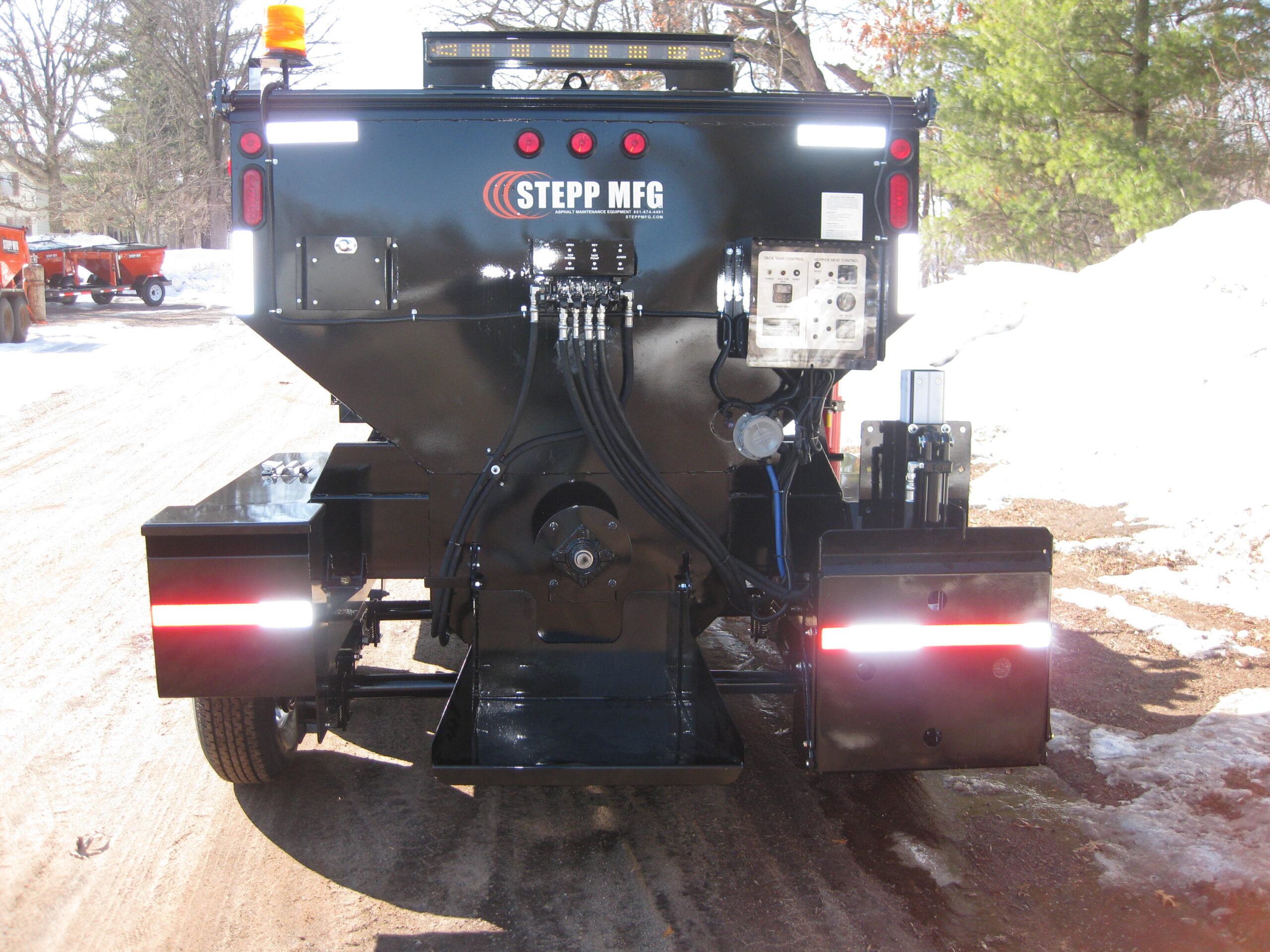

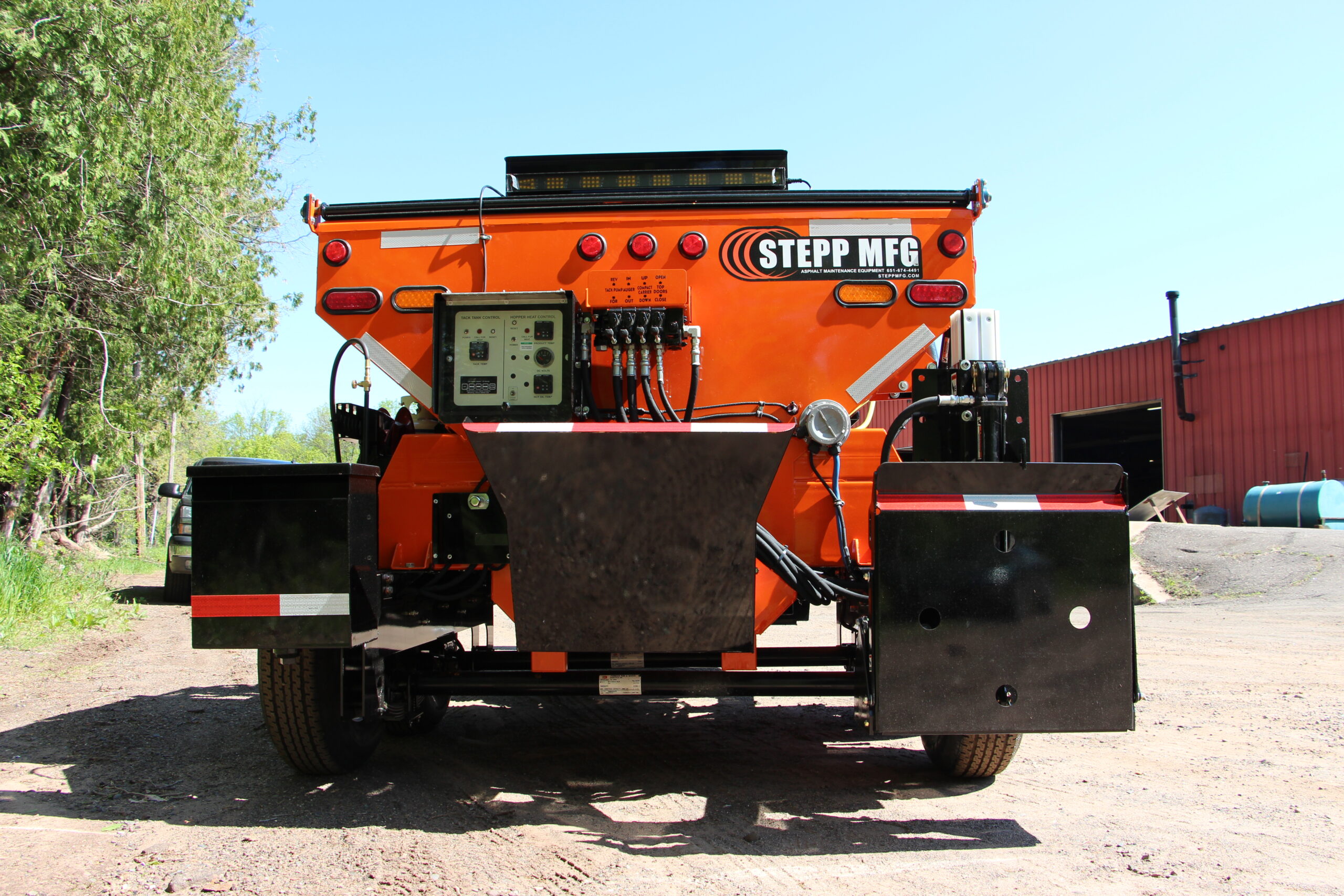

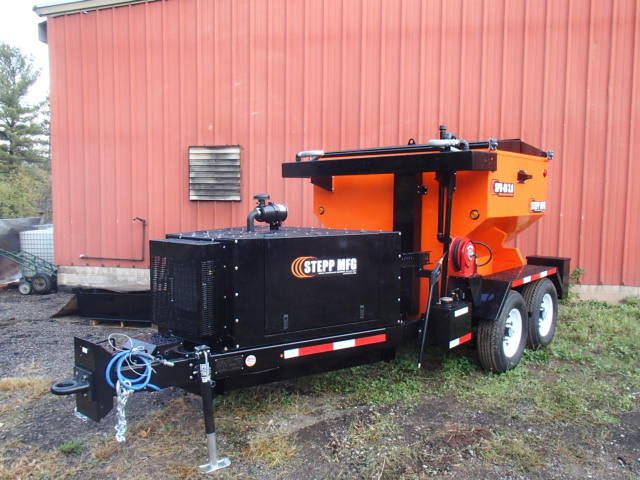

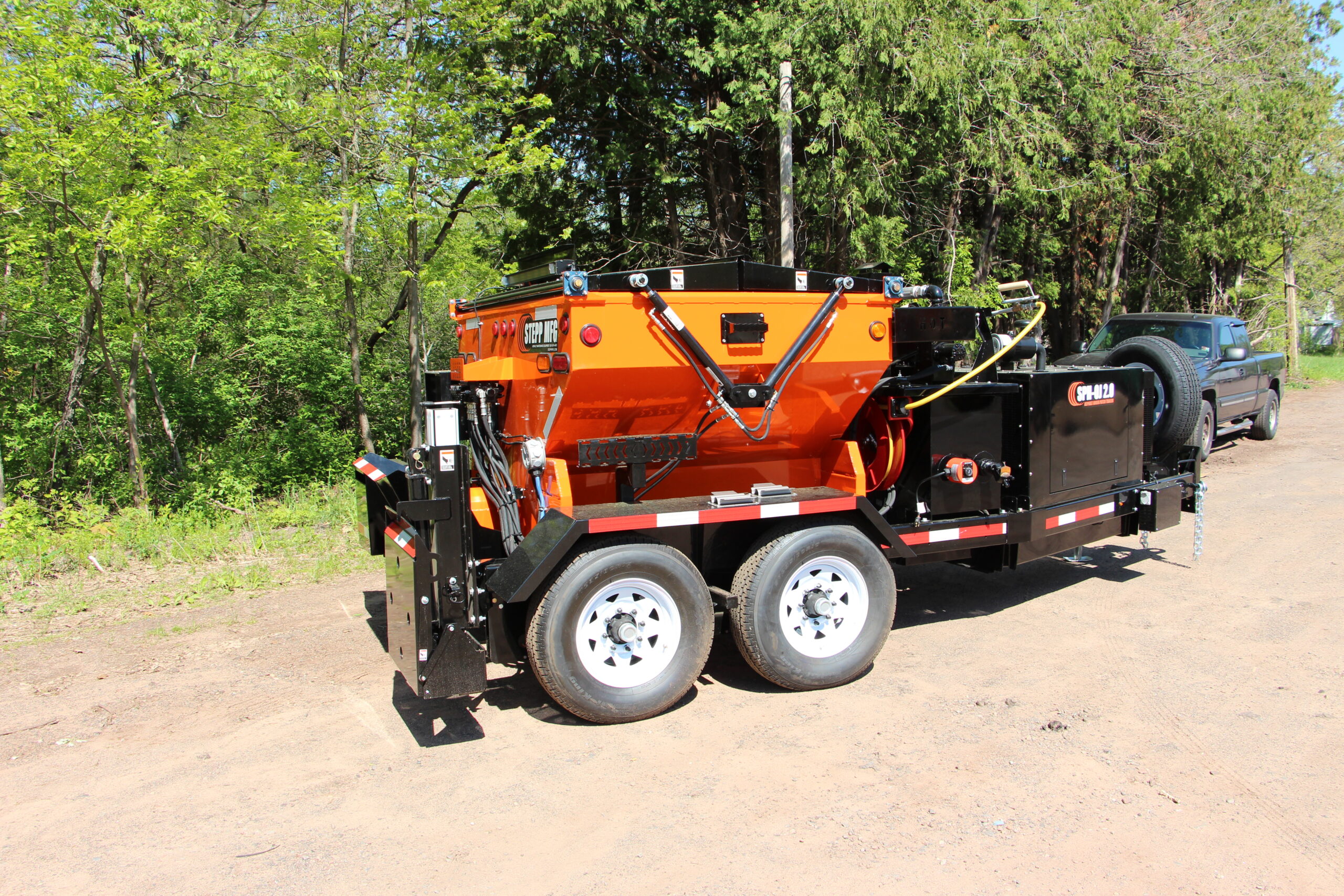

SPH-OJ Oil Jacketed Auger Discharge Hot Box

Available in 2.0 (3 ton) and 3.0 (4 ton) Cubic Yards

Stepp’s SPH-OJ Oil Jacketed Auger Discharge Hot Box is powered by a Kubota diesel engine and a Beckett diesel burner system, and comes fully equipped with hydraulic top doors. Our oil jacketed design eliminates hot spots, while keeping hot mix hot, and cold patch warm for hours. This heating system is also the premier heating system for reclaiming.

The SPH-OJ has the features of a Cadillac and the toughness of a Peterbilt. If your roads demand repair, the SPH-OJ has what it takes for years of dependable and safe operations.

Category:
  • Oil Jacketed for the smoothest heating system on the market.
  • 6″ x3/8″ AR 400 Hardened Auger and Auger Trough, and Hydraulic Direct Drive
  • Automatic Temperature Controls with Diesel Burner
  • Internal Oil Jacketed Baffle to provide heat to the middle of the hopper where it’s needed the most.

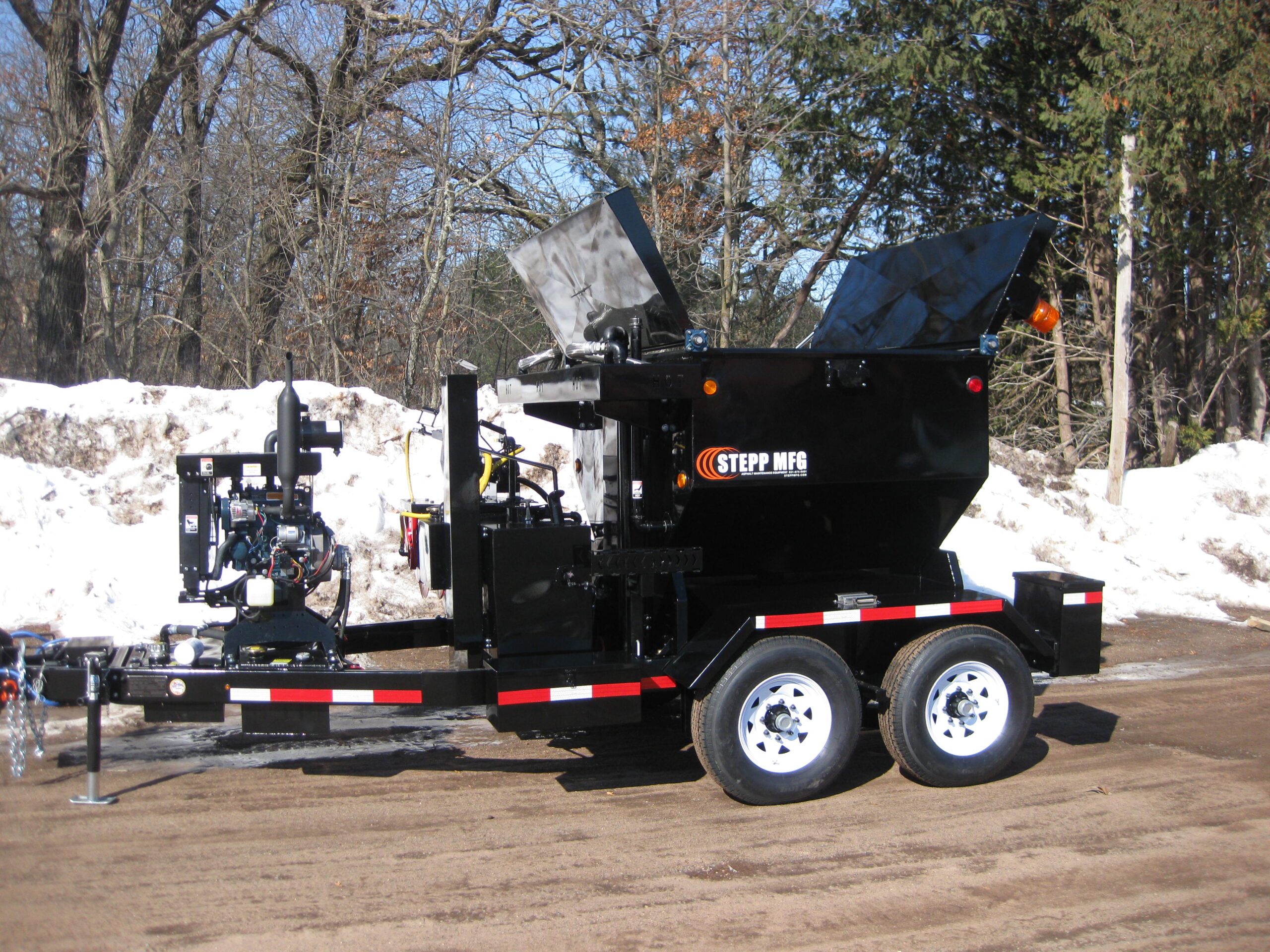

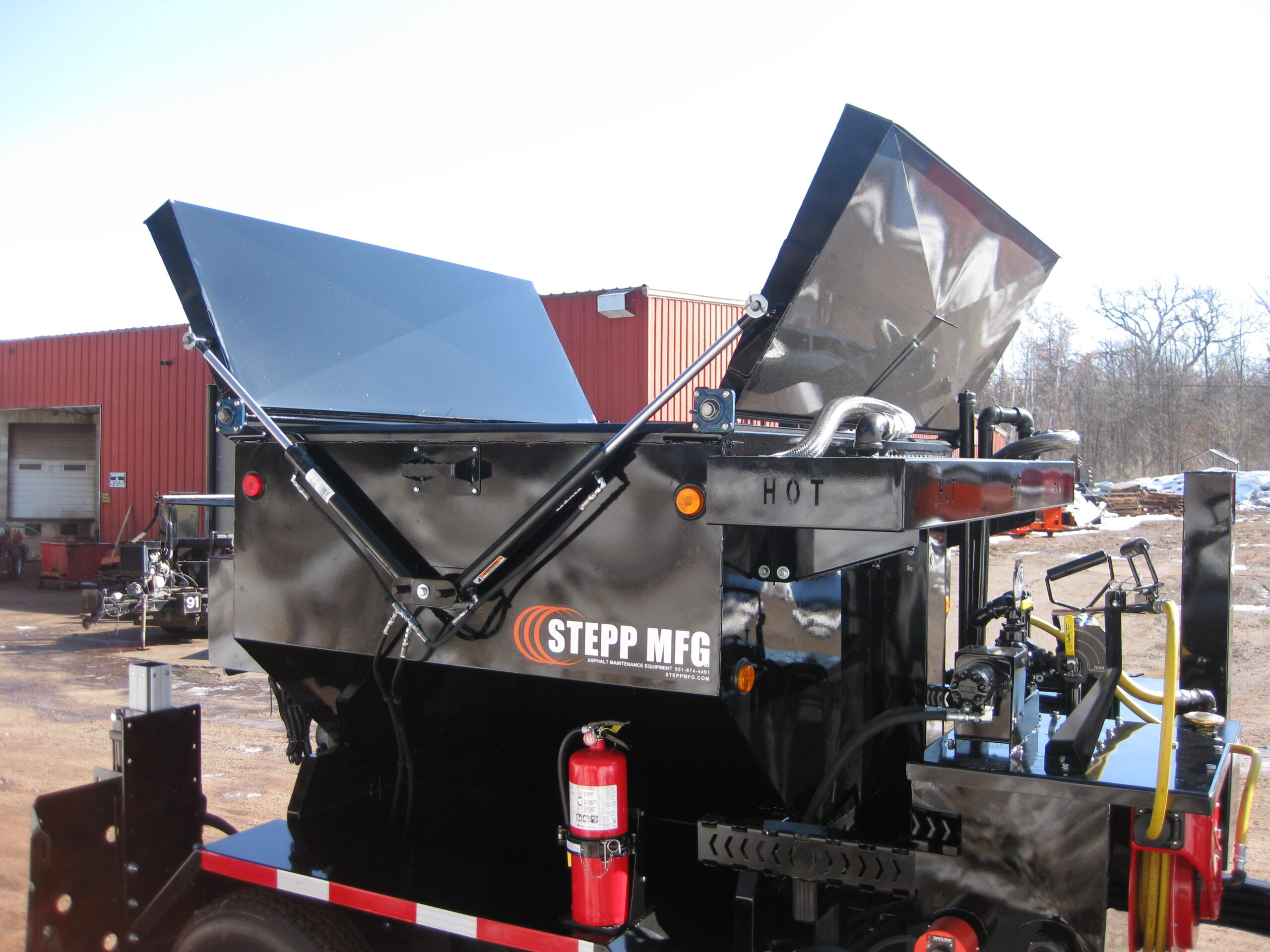

  • Hydraulic Top Doors
  • Folding Shovel Pan that allows you to dispense material directly on the road for large patches.
  • Removable Steps
  • 25 Hp Liquid Cooled Kubota Diesel Engine with Noise Deadening Enclosure and Digital Engine Management System
  • 2″x6″x3/16″ Rectangular steel tubing frame with one piece shackle
  • Stainless Steel Burner Liner

Available in 2.0 (3 ton) and 3.0 (4 ton) Cubic Yards

Stepp Oil Jacketed Premix Heater- SPH-OJ
Each base unit includes: Diesel Burner, Automatic Temperature Controls, Oil Jacketed Heat, Auger Delivery, Hydraulic Top Doors, Diesel Engine, Engine Enclosure, Electric Brakes, and a 2 Light System

SIZE

  • 2.0 Cubic Yard (3 ton)
  • 3.0 Cubic Yard (4 ton)

HEAT OPTIONS

  • Diesel Burner Enclosure*
  • 7 Day 24 Hr Diesel Burner Timer (requires battery charger)
  • Electric Overnight Heat 110V 1500W (cold mix use)
  • Electric Overnight Heat 220V 3000W (hot mix use)*

TRAILER OPTIONS

  • Flush Mounted Strobe Light*x2
  • Beacon Style Strobe Light
  • Arrowboard
  • 10# Fire Extinguisher
  • Tool Box 10″x10″x24″
  • SMV Sign
  • Spare Tire w/ Holder
  • Compactor Plate Carrier*
  • 15 Gallon Plastic Water Tank
  • Stainless Steel Tool Holder*x2
  • Platform w/ Railing and Steps (not available with tack tank)
  • Battery Charger
  • LP Hand Torch w/ 20# LP Bottle
  • Hose Reel for Hand Torch
  • Washdown System*
  • Hose Reel for Washdown*
  • Shovel Cleaning Compartment*

TACK TANK OPTIONS

  • Tack Tank- 40 gal, Diesel Heat, Auto Temp, Gravity Discharge
  • Tack Tank- 40 gal, Diesel Heat, Auto Temp, Spray System*
  • Electric Overnight Heat for Tack Tank 110V 1500W*
  • Hose Reel for Tack Hose
  • Aluminum Wand in lieu of Steel

LIGHT OPTIONS

  • 2 Light LED

BRAKE OPTIONS

  • Hydraulic Brakes – Tandem Axle

PAINT (MUST CHOOSE ONE)

  • Hwy Orange
  • Yellow
  • Black
  • Other: __________

HITCH (MUST CHOOSE ONE)

  • 2-5/16″ Ball
  • 3″ Pintle

LIGHT PLUG STYLE (MUST CHOOSE ONE)

  • 6 Pin Round
  • 7 Pin RV

SPH-OJ Sell Sheet with Quick Spec
SPH-OJ Spec
SPHOJ-2.0 Bidding Spec
SPH-OJ-3.0 Bidding Spec

Stepp Mfg SPHOJ Training Video with Tack Tank, 4 Ton, Auger Unit
