OJK-V Oil Jacketed Crack Sealer Vertical

Available in 75 and 125 Gallon

Welcome to the Future of Crack Sealing!

Stepp Mfg has always been an industry leader in technology with crack sealing equipment, and with our new OJK-V line of crack sealers, we continue to be the number one choice for crack sealing equipment. With over 20 new design innovations on our OJK-V series, we took a great machine and made it even better!

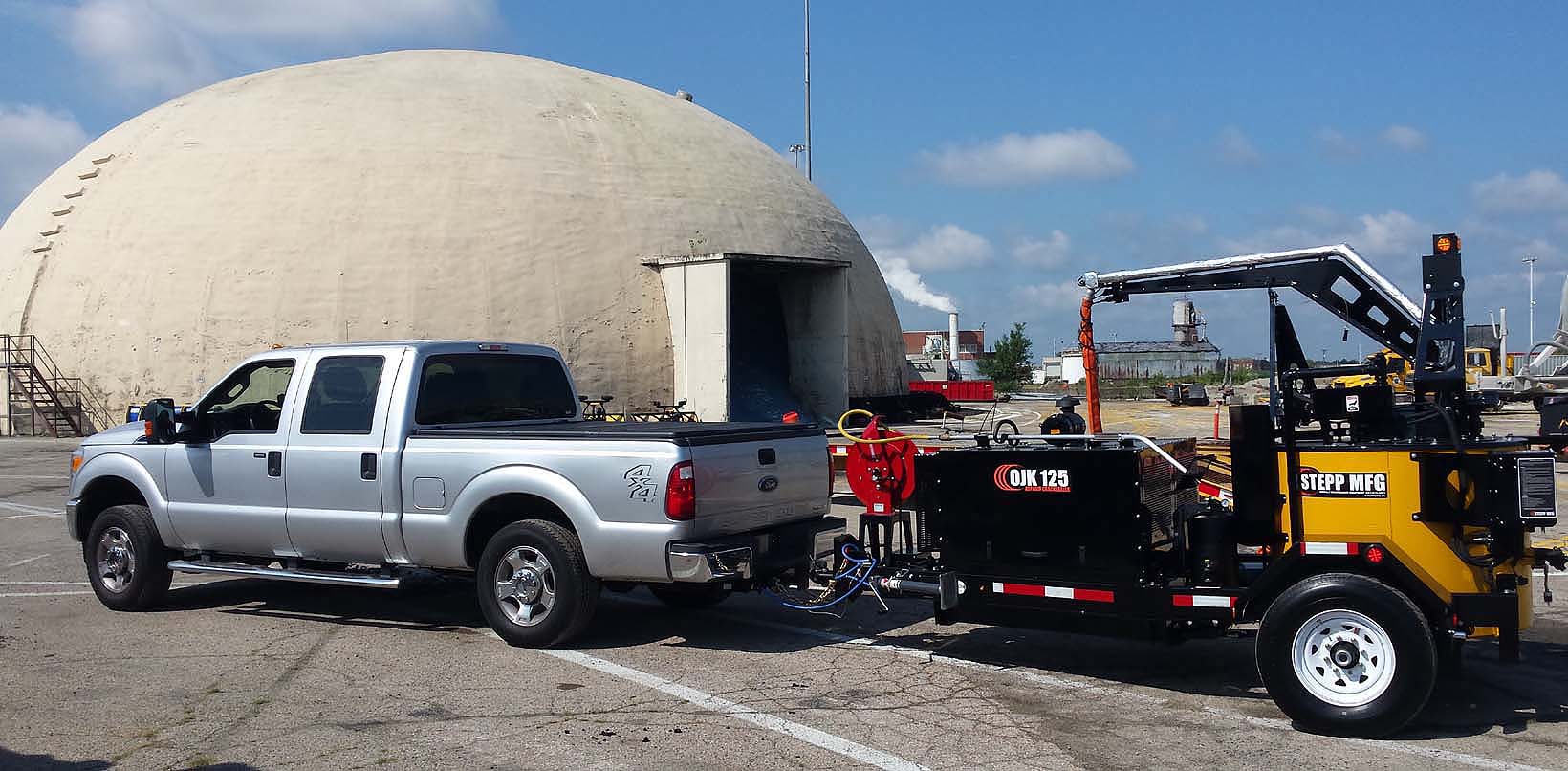

The Stepp Mfg’s Oil Jacketed (double boiler) Asphalt Crack Sealing Kettle is used to melt rubberized crack sealing and water proofing compounds, and apply them to roads, parking lots, and bridge decks to repair and seal cracks. Our OJK-V tar kettle is trailer mounted and completely self-contained, meaning it is capable of heating, melting, and applying all grades of rubberized asphalt crack sealer, joint sealants, and waterproofing compounds without the need for additional equipment. Our submerged pumping system eliminates freeze-ups by allowing the pump to heat with the material, and a splash-free safety loading chute ensures safe operation; couple that with the heated overhead boom and auto-loading system, and you have the ultimate crack sealing machine.

Category:
  • AKC Smart Technology / Advanced Kettle Controls / CAN Bus Control System
  • Diesel or Propane Fired Burners
  • Gravity Discharge or Pumping System

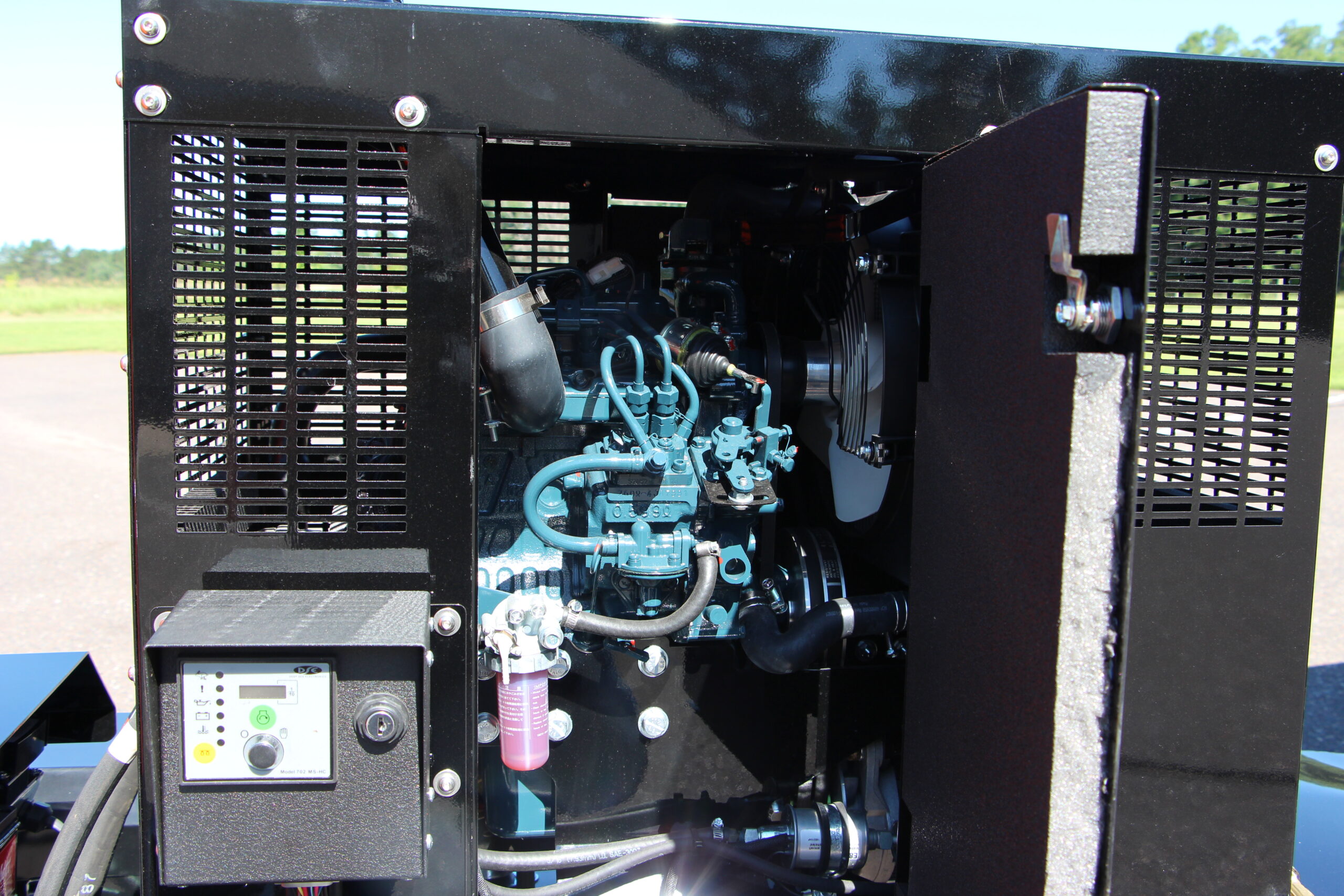

  • Kubota Power Digital Engine Management System

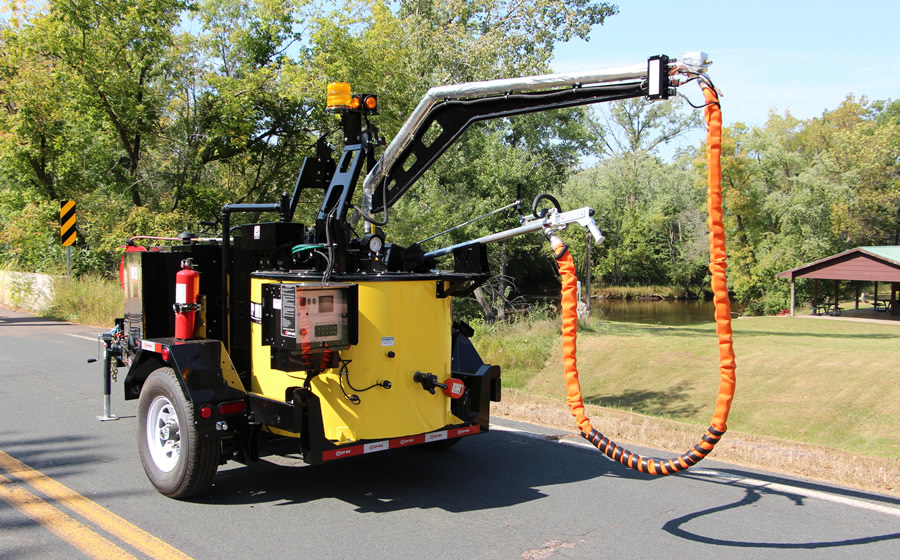

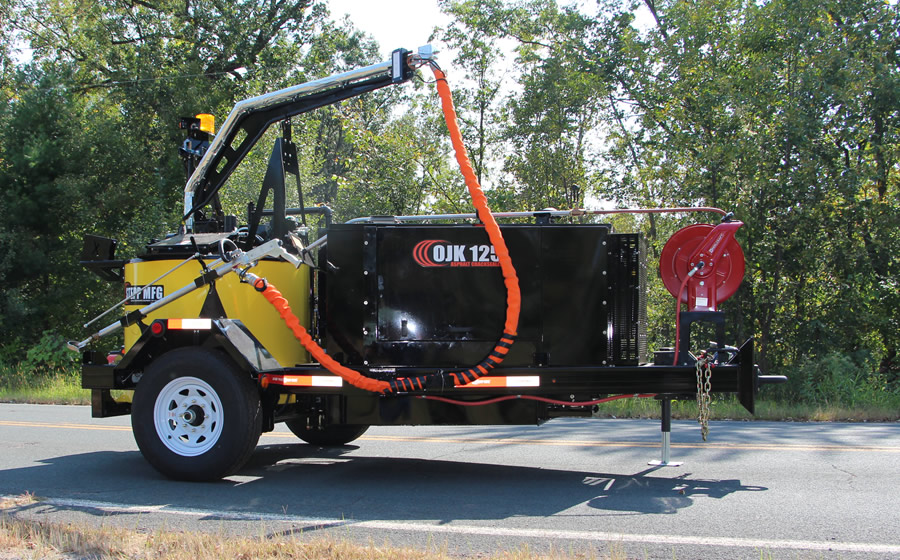

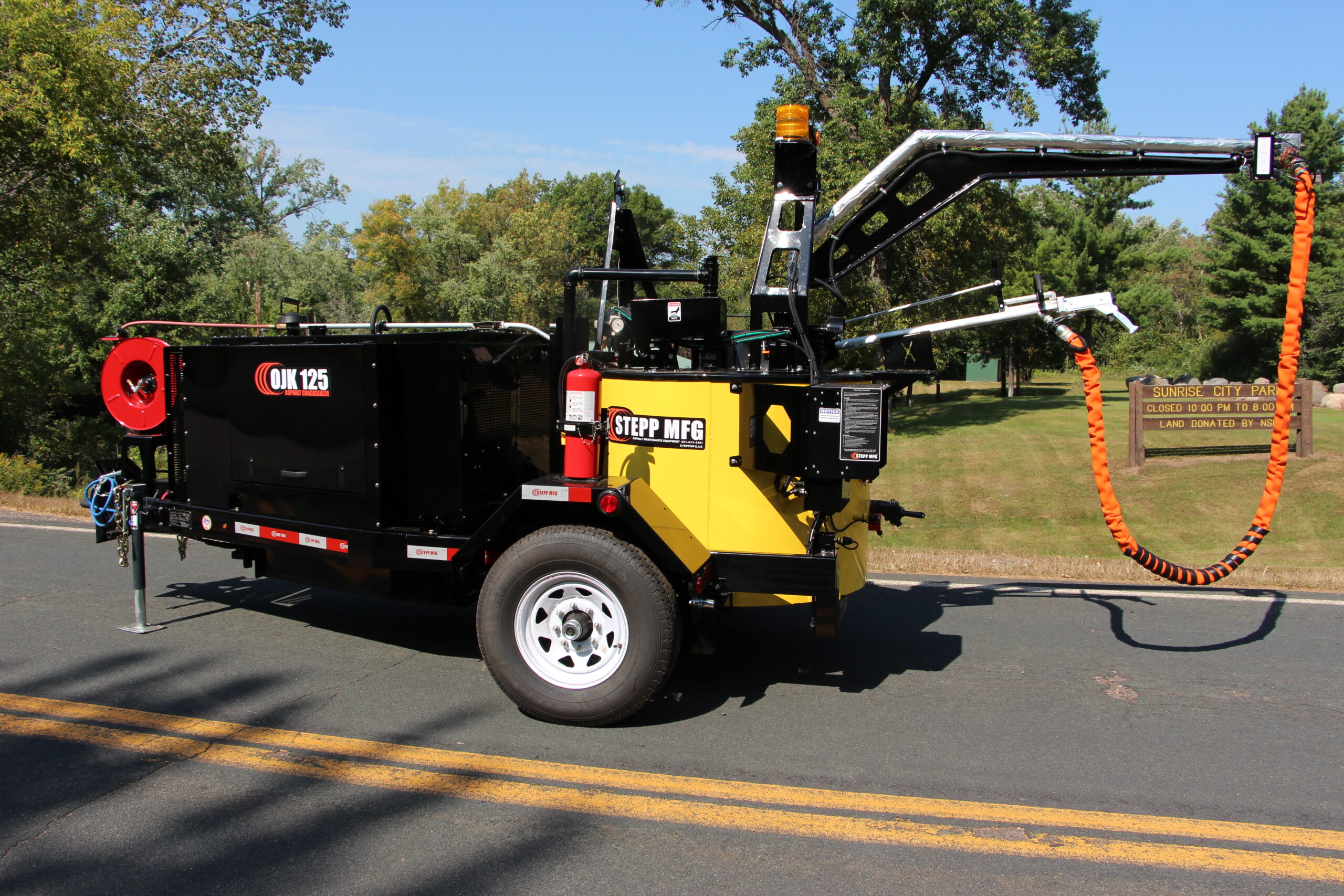

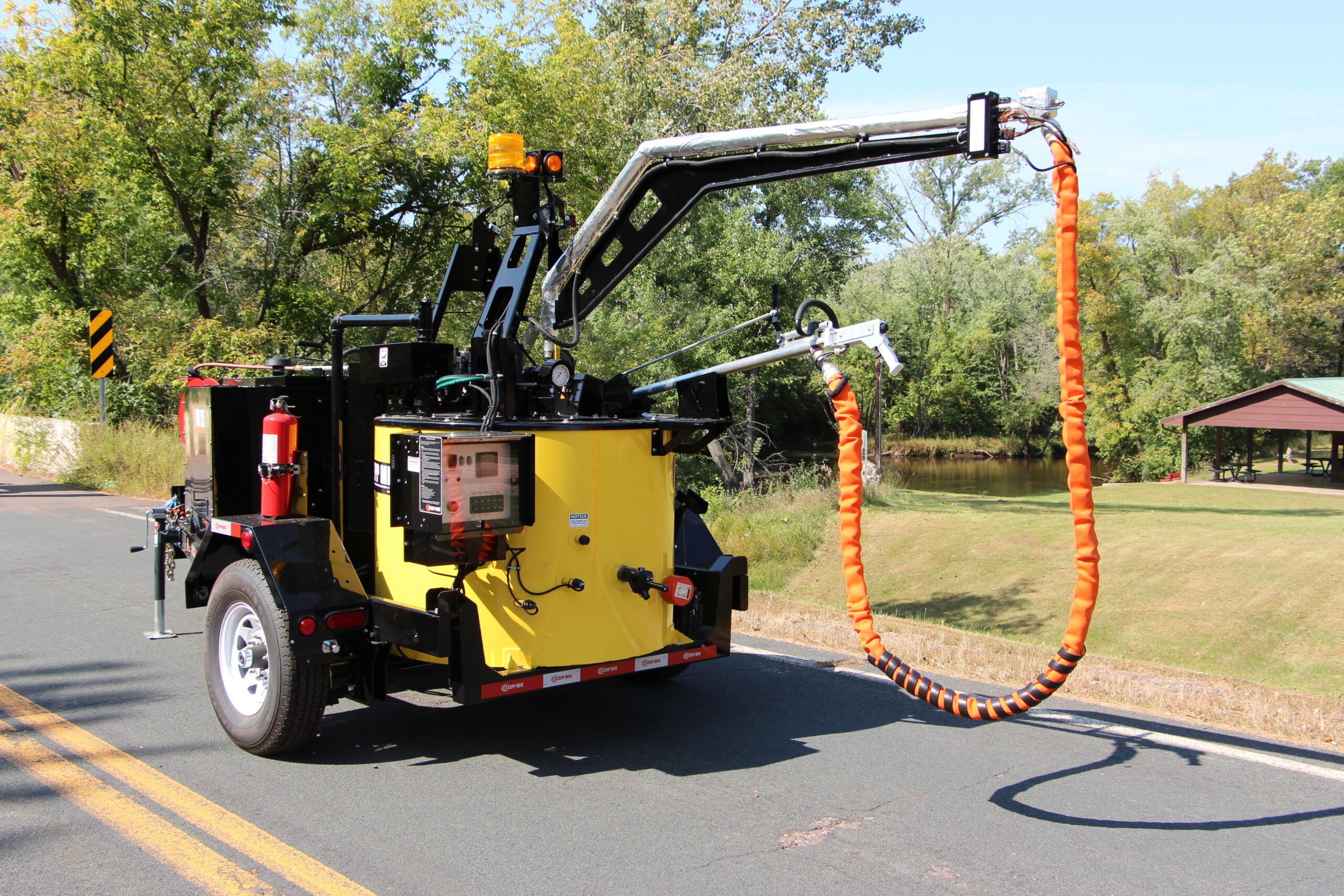

  • Heated Overhead Boom and Hose System
  • Ultra-Light Hose – Smooth Bore Teflon with Inner Floppy Guard and Outer Braid

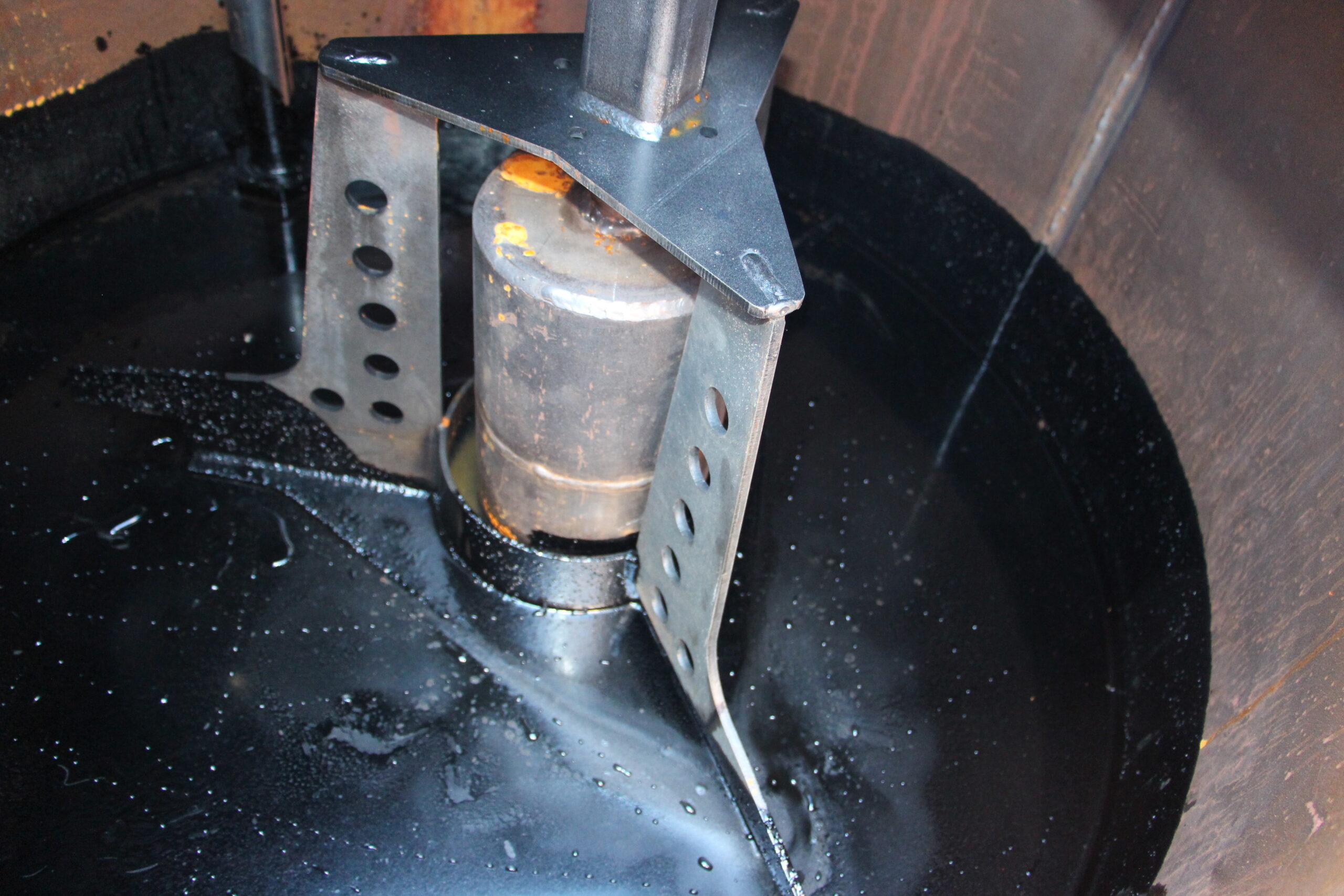

  • Removable Bolt-on Submerged Pumping System

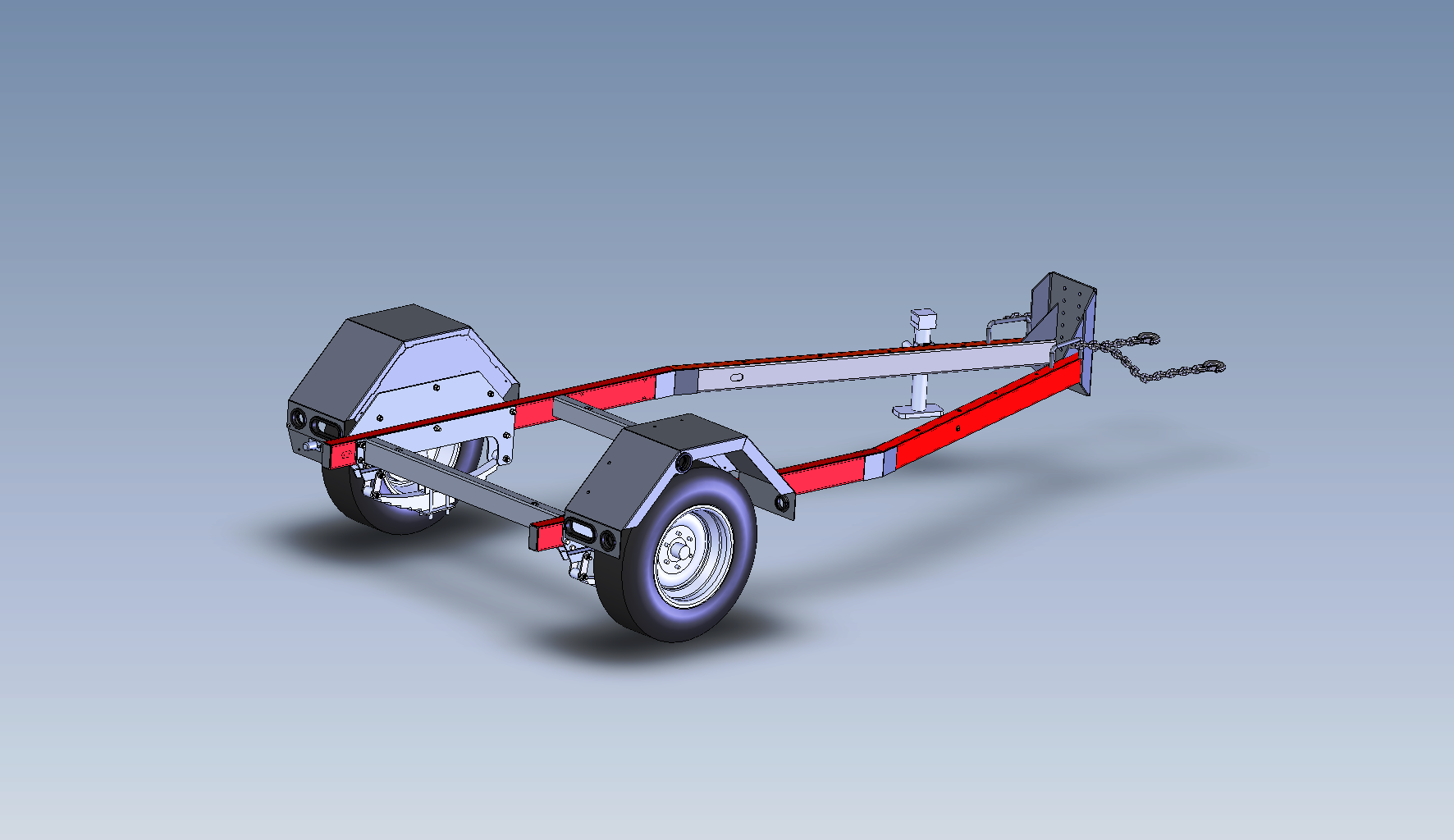

  • One-piece Bolt-on Shackles – 250% Stronger than the Competition
  • Optional Noise Insulated Engine Enclosure

Available in 75 and 125 Gallon

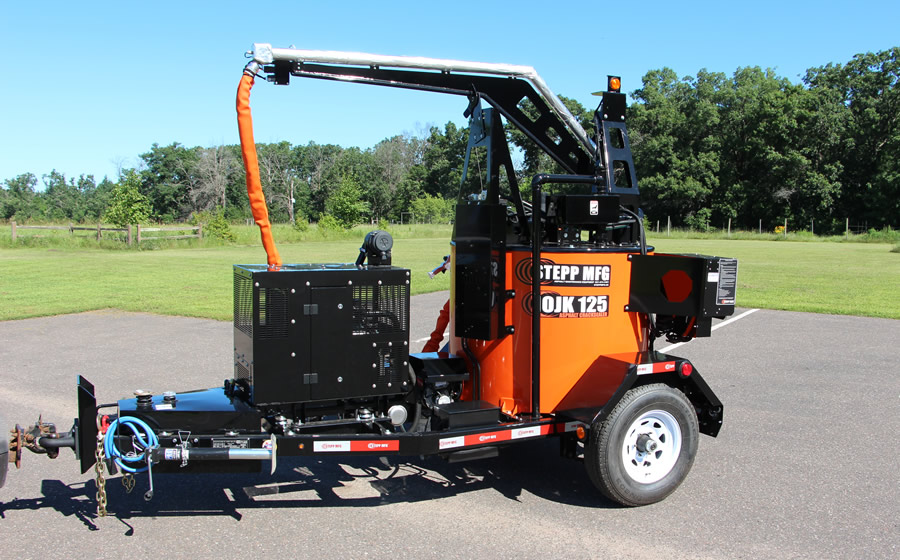

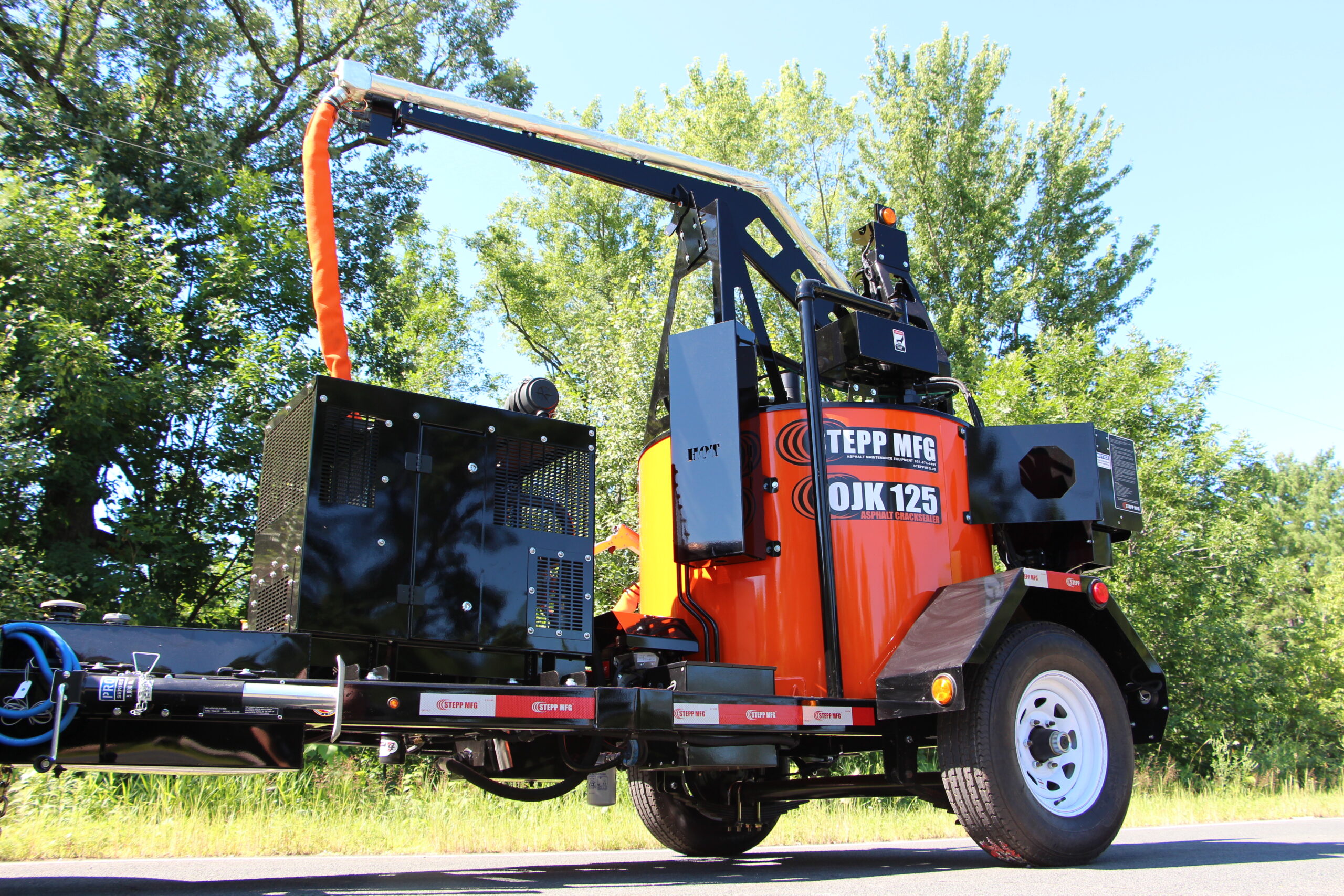

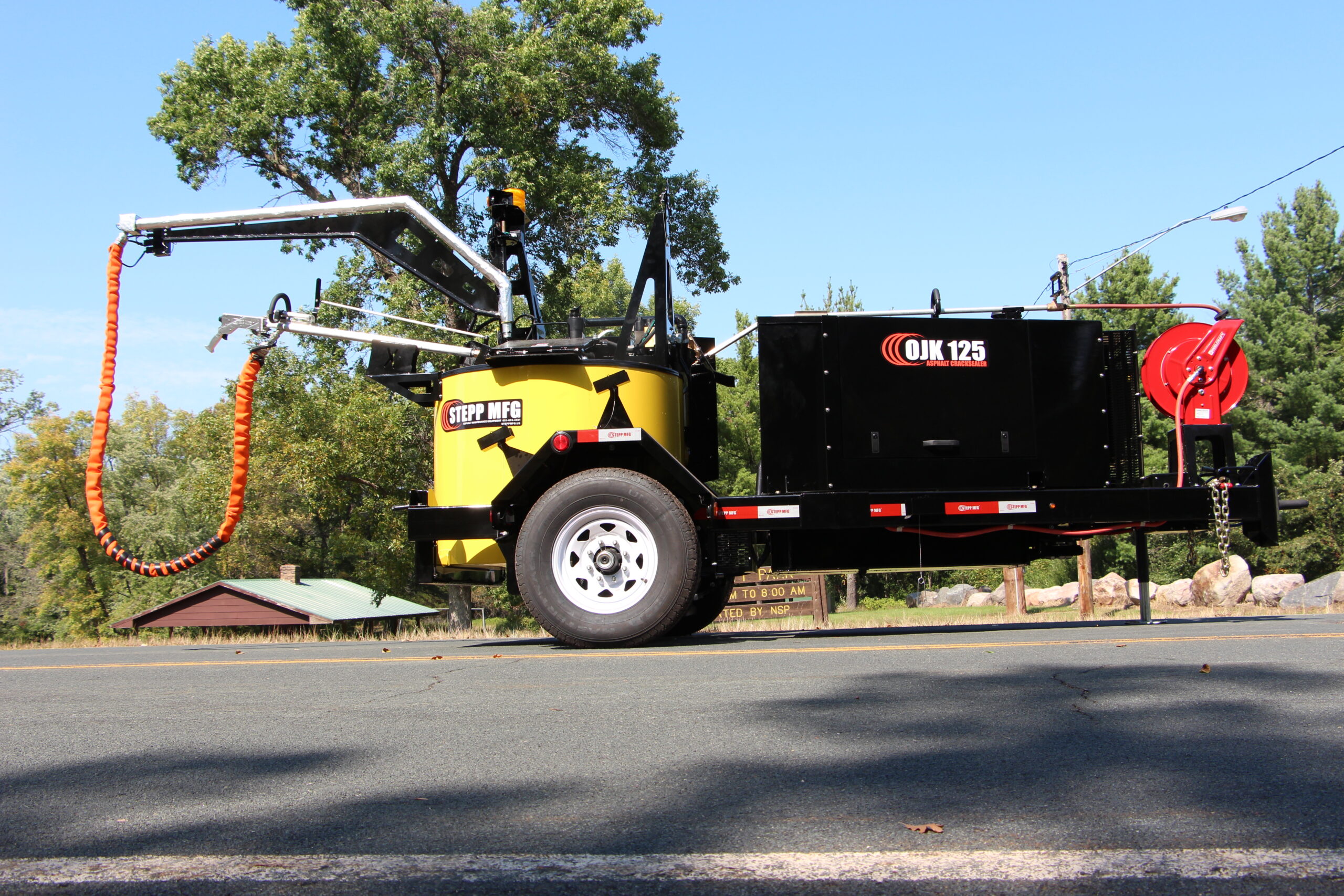

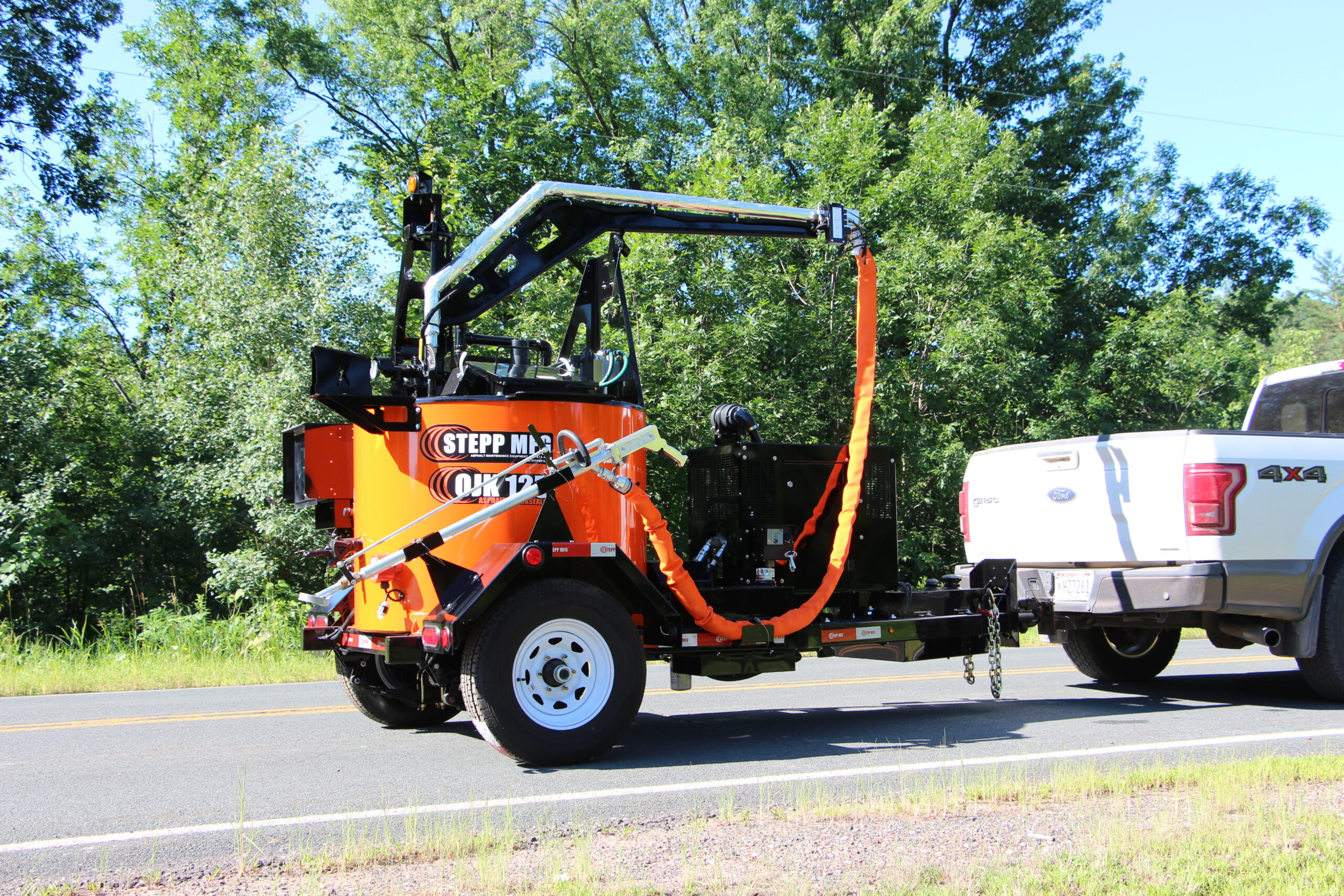

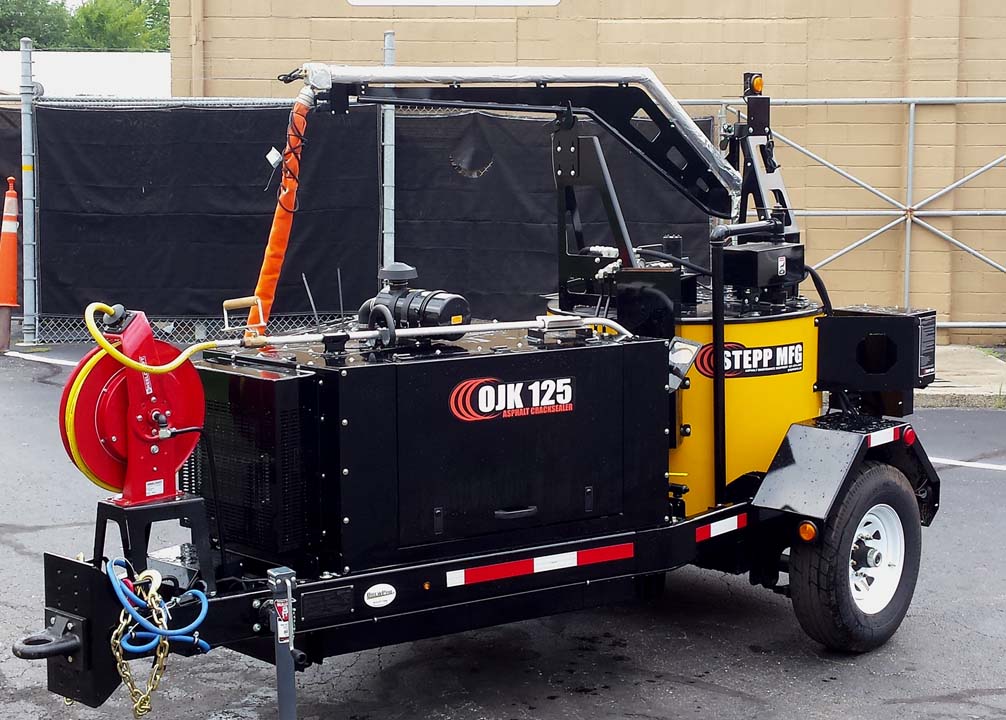

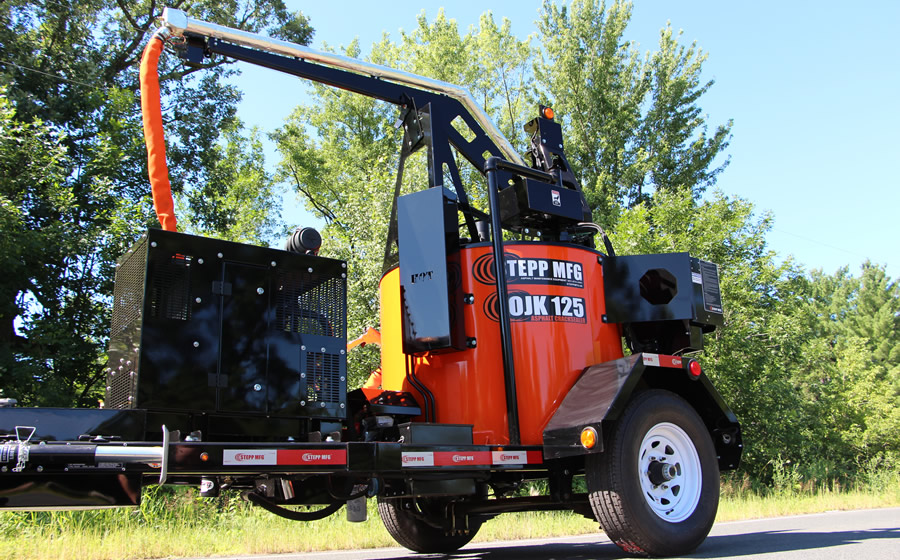

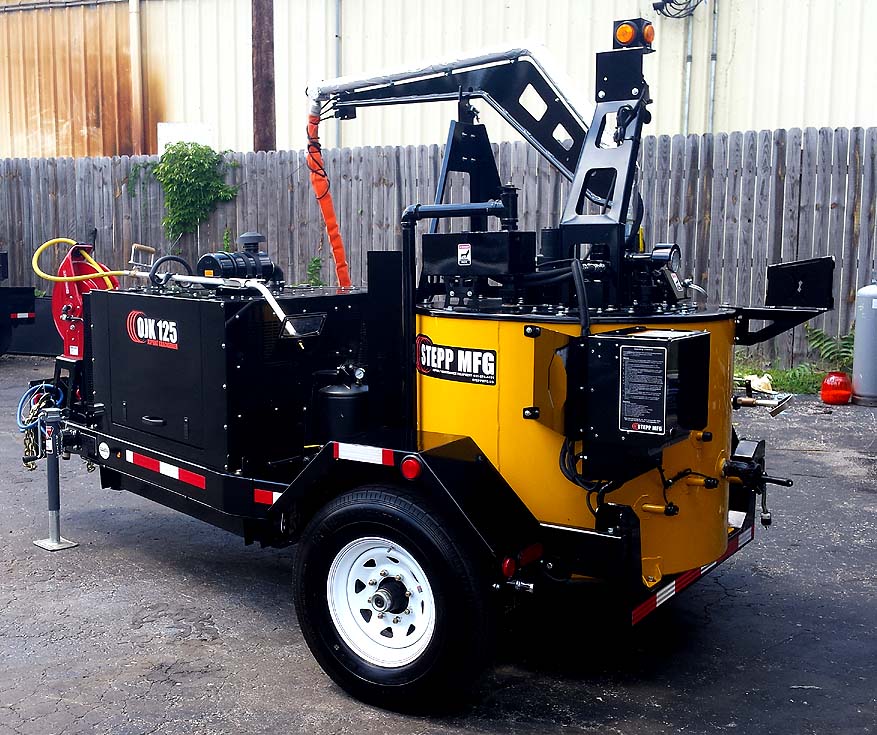

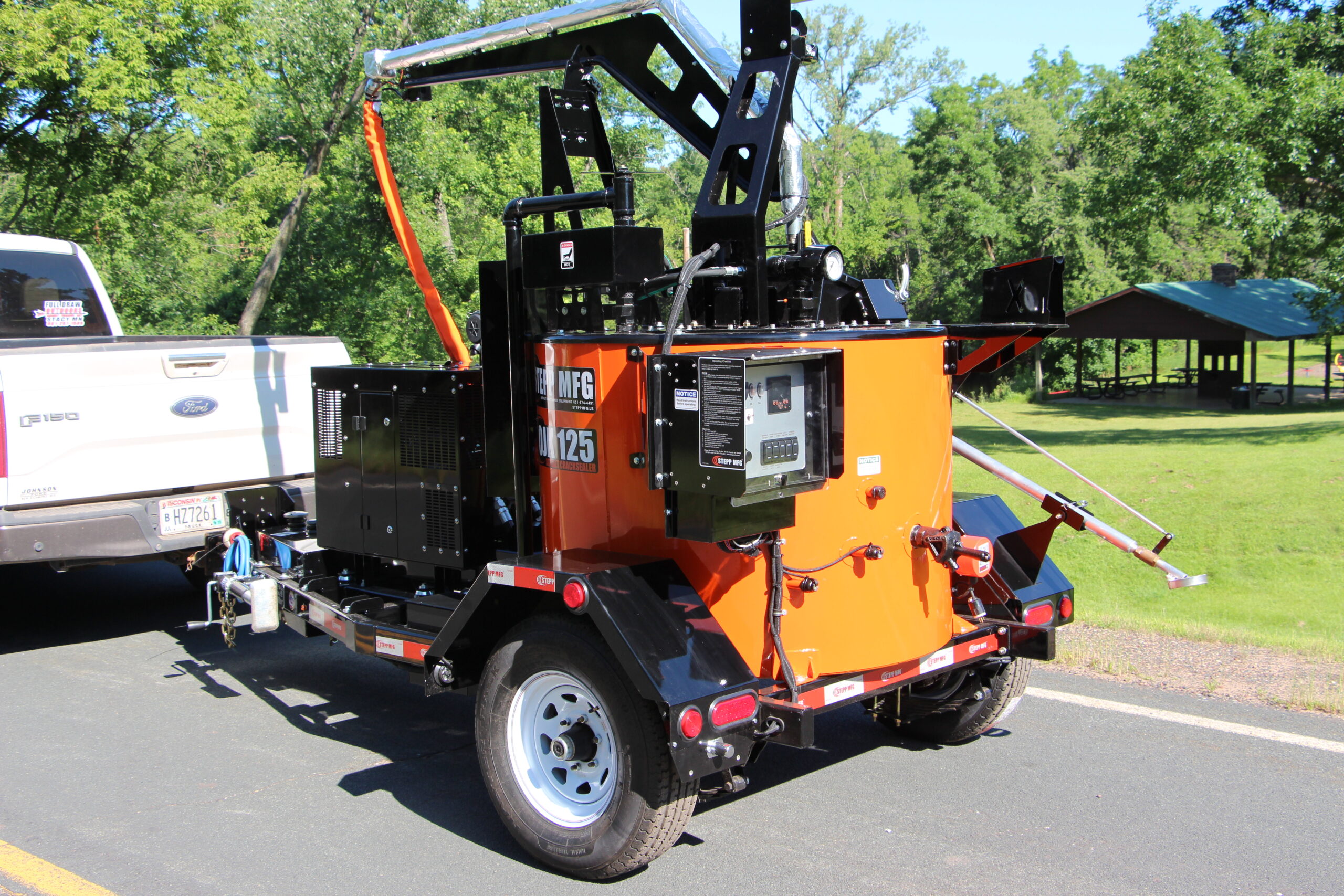

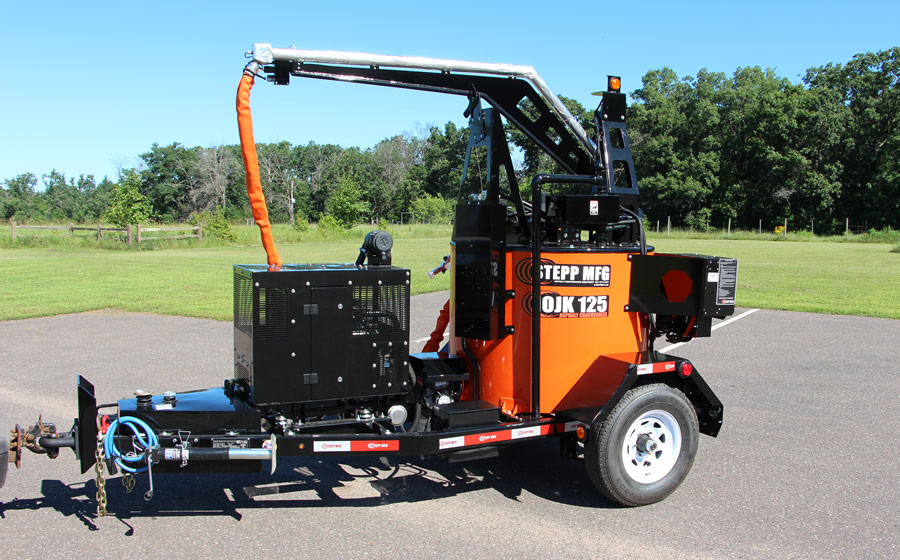

Stepp Oil Jacketed Kettle OJK-Vertical
Each base unit includes: LP or Diesel Burner w/ Auto Temp Controls, Bottle Rack for LP Systems, Gravity Drain, Agitator, Agitator Shutdown Switch, Electric Brakes, and a 2 Light LED System

SIZE

  • 75 Gallon- Propane Burner
  • 75 Gallon- Diesel Burner
  • 125 Gallon- Propane Burner
  • 125 Gallon- Diesel Burner

LP Heat Options

  • Extra Bottle Rack (one comes standard)
  • 100# LP Cylinder

Diesel Heat Options

  • Diesel Burner Enclosure

Additional LP or Diesel Heat Options

  • Electric Overnight Heat 110V 1500W*

UNIT OPTIONS

  • Air Compressor (available w/ diesel units only)
  • Autoloader
  • Pumping System w/ Pump Saver (on-demand pumping system)*
  • Beacon Style Strobe Light
  • Arrowboard
  • 10# Fire Extinguisher
  • Tool Box 10″x10″x24″
  • SMV Sign
  • Spare Tire w/ Holder
  • Engine Enclosure*

PRODUCT DISTRIBUTION (REQUIRED W/ PUMPING SYSTEM)

  • Heated Overhead Boom with 8′ Hose and Wand
  • Heated Overhead Boom with 12′ Hose and Wand*
  • Heated 15′ Hose and Wand
  • Heated 20′ Hose and Wand
  • Short Trigger Wand- 48″ (upgrade from Steel Wand)*
  • Long Trigger Wand- 72″
  • Exact Flow- Wand Control

BRAKE OPTIONS

  • Hydraulic Brakes- Single Axle

PAINT (MUST CHOOSE ONE)

  • Hwy Orange
  • Black
  • Yellow
  • Other: __________

HITCH (MUST CHOOSE ONE)

  • 2-5/16″ Ball
  • 3″ Pintle

LIGHT PLUG STYLE (MUST CHOOSE ONE)

  • 6 Pin Round
  • 7 Pin RV

OJK-V Sell Sheet with Quick Spec
OJK-V Spec
Ojk-75 Bidding Spec
OJK-125 Bidding Spec

See the Stepp OJK 125 Crack Sealing Kettle 2019 training video
